Válvulas doseadoras forjadas Milli-mite

série 1300

Acima de £10m em produtos de stock para entrega em curto prazo.
Muitos produtos disponíveis no mesmo dia ou entrega no dia seguinte.
Distribuição europeia com alcance global.

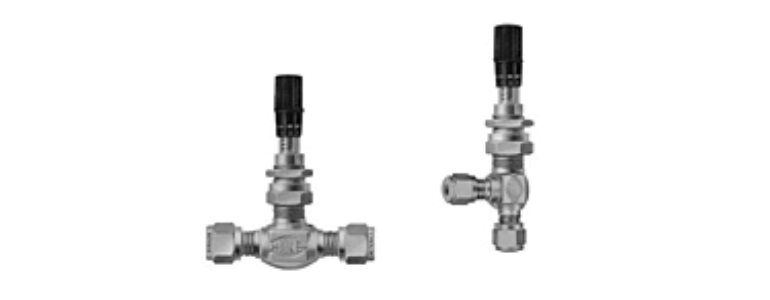

Process Control Equipment stocks an extensive range of Hoke® milli-mite forged metering valves in a variety of sizes and materials.

Typical applications
  • Fine metering in medical and biochemical gas or vapor analysis.
  • Sampling and analysing water and air pollution.
  • Chromatographs, mass spectrometers and other instruments where fine metering is required.
Features and specifications

Connections inlet and outlet: 1/4”, 1/8”, 3mm and 6mm.

  • Flow pattern: globe and angle.
  • Body material: 316 stainless steel and brass.
  • Operating pressure range: 3000 psig at 70 °F (207 bar at 21 °C) to 5000 psig at 70 °F (345 bar at 21 °C).
  • Operating temperature range: -65 ºF to +450 ºF (-54ºC to +232 ºC).
  • Cv: 0.010 to 0.024.
  • Stem: 1º to 3º.

Downloads

Download our business overview brochure here pdf - 5 MB

Válvulas

Interested in this Product? Our team are on hand for any queries or questions.

Enquire Now
